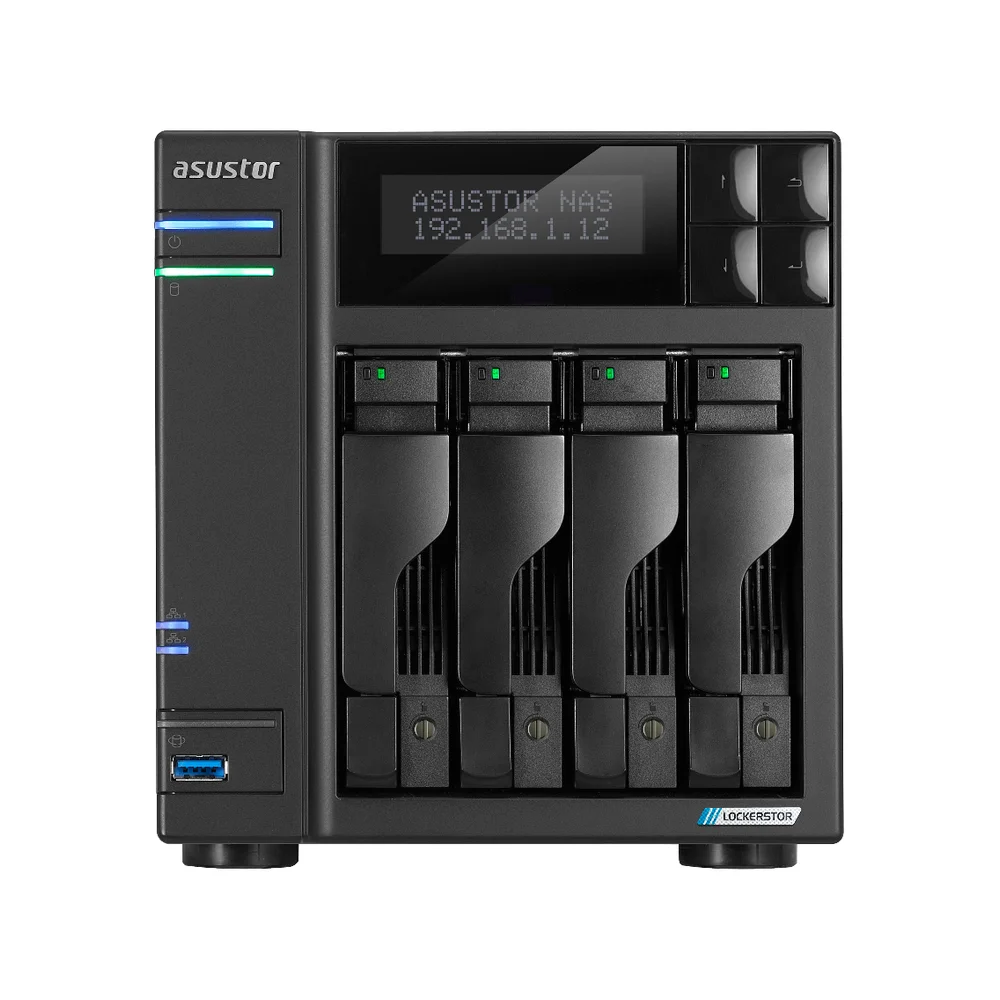

AS6704T V2
$1,099
Prices include GST.
- Brand
- ASUSTOR
- Series
- LOCKERSTOR 4 Gen2+
- Form factor
- Tower
- Drive bays
- 4
- Delivery
- Free, 2–3 working days. Or collect from our office.
- Warranty
- Local, through the authorised distributor in Singapore
- Payment
- PayNow or bank transfer, confirmed with you on WhatsApp
Full specifications
- Brand
- ASUSTOR
- Series
- LOCKERSTOR 4 Gen2+
- Form factor
- Tower
- Drive bays
- 4
- M.2 slots
- 4
- Drive types
- 3.5" SATA HDD; 2.5" SATA HDD; 2.5" SATA SSD; M.2 2280 NVMe
- Max bays with expansion
- 12
- CPU
- Intel Celeron N5105
- CPU cores
- 4
- CPU frequency
- Quad-Core 2.0GHz (burst up 2.90 GHz)
- Memory installed
- 4
- Memory type
- SO-DIMM DDR4
- Max memory
- 16
- Memory slots
- 2
- LAN ports
- 2 x 5GbE
- Fastest LAN
- 5GbE
- USB ports
- 2 x USB 3.2 Gen 2 ( 10Gbps ) Type-A; 1 x USB 2.0 Type-A
- PCIe slots
- 1 x for optional expansion 10 GbE card
- Video output
- 1 x HDMI 2.0b
- Hot-swappable
- true
- RAID levels
- Single; JBOD; RAID 0; RAID 1; RAID 5; RAID 6; RAID 10
- Power supply
- 90W x1
- Power consumption
- 35 W (Operation); 17.3 W (Disk Hibernation); 0.88 W (Sleep Mode)
- Noise
- 17.6
- Dimensions
- 185.5(H) x 170(W) x 230(D) mm
- Weight
- 2.94
- Warranty
- 3
Description
A four-bay tower NAS for small creative teams and home offices that need reliable, high-speed file access. It suits builds where multiple users share large media files or run virtual machines simultaneously. The Intel Celeron N5105 processor handles 4K video transcoding and virtualisation tasks efficiently. Dual 5GbE ports double network bandwidth for faster transfers, while four M.2 slots allow for NVMe caching or additional storage. The system supports up to 16 GB of DDR4 RAM and includes a PCIe slot for optional 10GbE upgrades. The unit comes with a three-year warranty.
